ADAM AUDIO Studio Monitor T5V

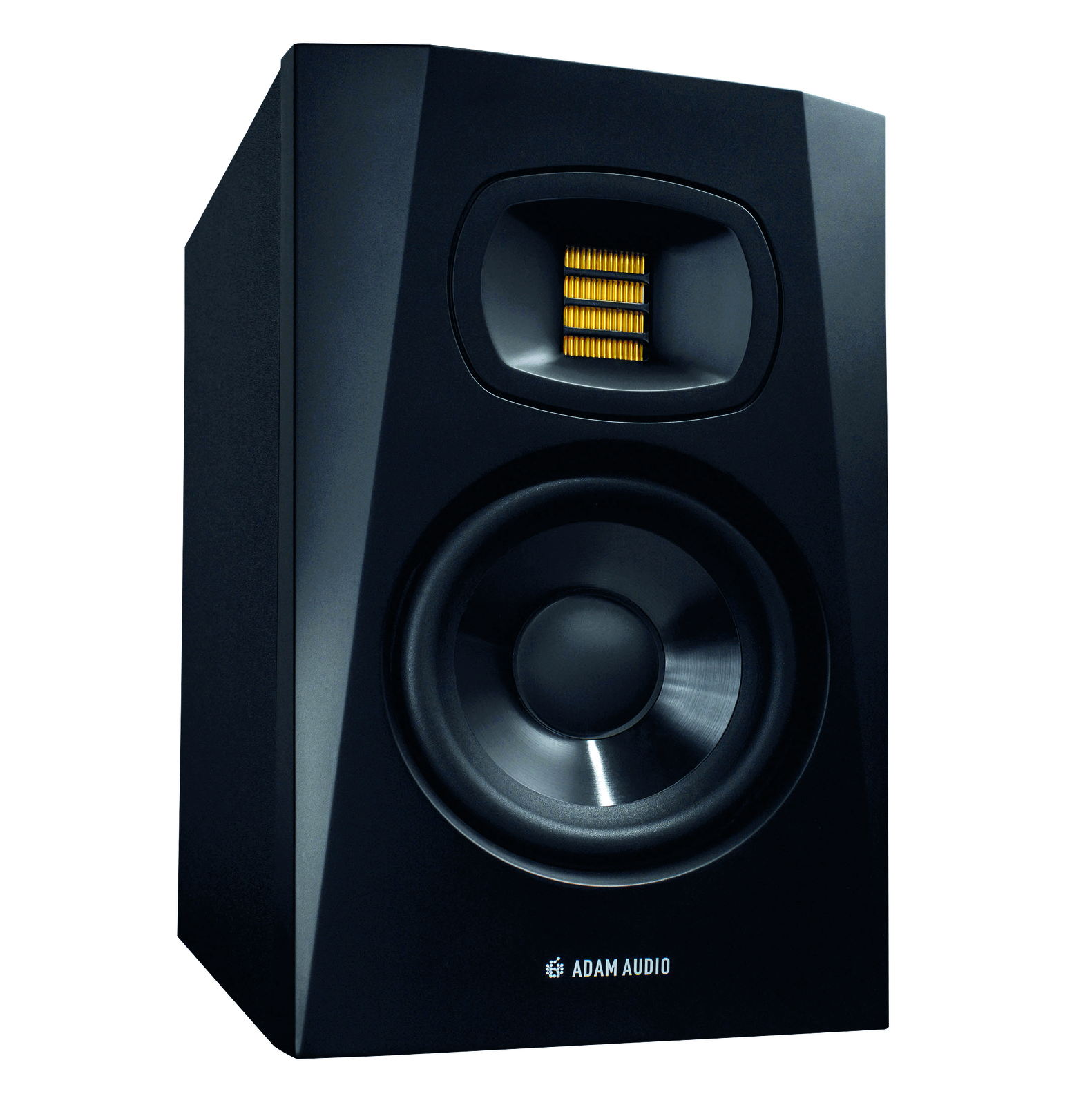

ADAM Audio T5V — 5-Inch Active Studio Monitor

The ADAM Audio T5V is a professional bi-amplified studio monitor built for home studios, music producers, and mixing engineers who demand accuracy without compromise. Featuring ADAM's signature U-ART ribbon tweeter and a 5-inch woofer driven by 70W of Class D amplification, the T5V delivers a wide, fatigue-free frequency response from 45 Hz to 25 kHz. Built-in room tuning controls, a flagship-derived HPS waveguide, and dual input connectivity make it one of the most capable and versatile monitors at this price point.

Key Features:
U-ART 1.9" Ribbon Tweeter — moves air 4× faster than conventional dome tweeters, delivering extended highs up to 25 kHz with remarkable detail and zero listening fatigue
HPS Waveguide — ADAM's flagship S-Series waveguide technology creates a wide horizontal sweet spot for accurate, consistent stereo imaging without needing a locked listening position
70W Bi-Amplified Class D — dedicated 50W (LF) + 20W (HF) amplifiers keep output clean, thermally efficient, and distortion-free at any volume level

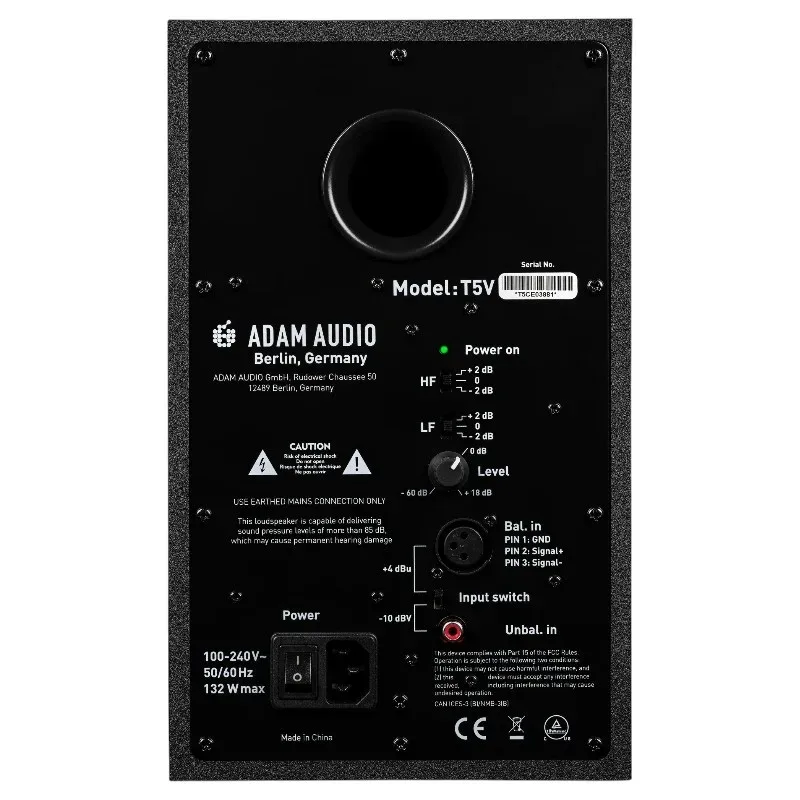

Room Tuning Controls — rear-panel LF and HF switches (±2 dB each) let you correct for wall placement and room acoustics directly on the speaker, no external EQ needed
Dual Inputs — XLR balanced and RCA unbalanced inputs with rear-panel toggle for seamless compatibility with professional audio interfaces and consumer sources
106 dB Max SPL — clean, dynamic headroom for accurate, detailed playback across a wide range of listening levels
Rear-Firing Bass Reflex Port — bevelled port design delivers tight, controlled bass; place speakers 6–12 inches from walls for optimal low-end accuracy

Technical Specifications:
Woofer — 5-inch polypropylene cone
Tweeter — U-ART 1.9-inch Accelerated Ribbon Tweeter
Amplifier — Class D, bi-amplified
Total Power — 70W RMS (50W LF + 20W HF)
Frequency Response — 45 Hz – 25 kHz
Max SPL — ≥106 dB per pair at 1m
Crossover Frequency — 3 kHz
Inputs — XLR (Balanced), RCA (Unbalanced)
Cabinet — Rear-firing bass reflex with bevelled port
Weight — 5.7 kg (12.6 lbs) per speaker
