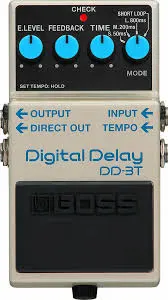

BOSS Effect Pedal DD 3T

BOSS DD-3T Digital Delay Pedal

Built-in Tap Tempo — Hold the footswitch for 2 seconds to sync delay repeats to any live tempo — no guesswork, no external tools needed
External Tempo Jack — Connect a BOSS FS-5U or FS-7 footswitch to the dedicated TEMPO input for on-the-fly tempo tapping without interrupting your playing
Rhythmic Subdivisions — In tap tempo mode, the Mode knob selects triplets, dotted eighth notes (classic U2 / The Edge bounce), or standard quarter notes
Redesigned Output Layout — Main output and Direct Out now on the same side for cleaner wet/dry and dual-amp stereo rig wiring
Wide Delay Range — 12.5ms to 800ms across three selectable ranges (50ms / 200ms / 800ms) plus a built-in Short Loop mode for simple phrase looping
Iconic DD-3 Tone — The same warm, crystalline digital delay circuit that has been a studio and stage staple for over three decades
Key Specifications
Delay Time — 12.5 ms to 800 ms (three selectable ranges)
Controls — E.Level, Feedback, Time, Mode (range / subdivision selector in tap mode)
Bypass Type — Buffered Bypass (BOSS standard)
Inputs — 1× ¼" Instrument Input, 1× ¼" External Tempo Input
Outputs — 1× ¼" Main Output, 1× ¼" Direct Out
Power — 9V DC Power Supply (BOSS PSA recommended) or 9V Battery
Current Draw — 45 mA (power supply strongly recommended over battery)
Dimensions — 73 mm (W) × 129 mm (D) × 59 mm (H)
Weight — 420 g (including battery)
