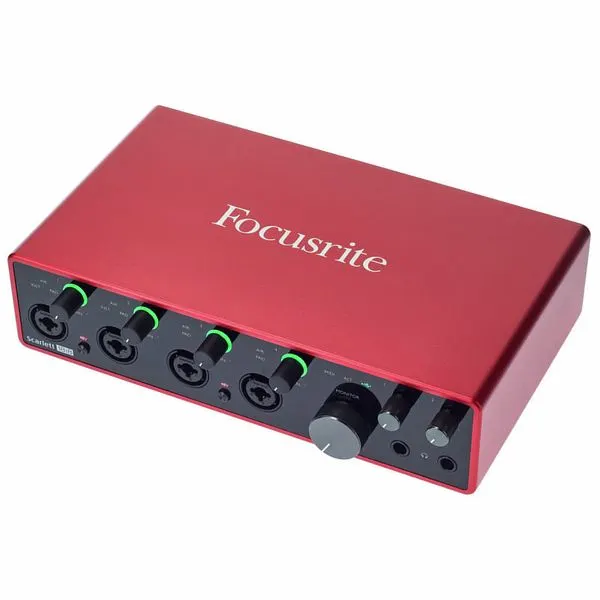

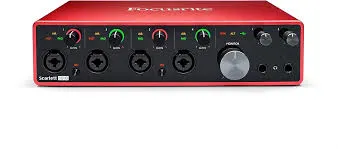

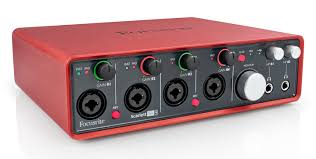

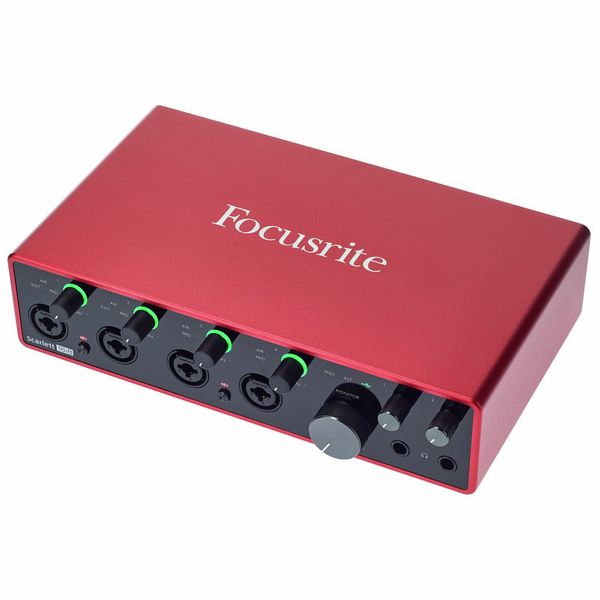

Focusrite Scarlett 18i8

SCARLETT 18I8 FOR THE BAND. High channel count. Small footprint. Whatever you’re recording, wherever you are, take your whole studio with you. 18i8 is studio sound for the whole band. Mic Pres: 4 Instrument Inputs: 2 Line Ins: 8 Line Outs: 4 Headphone Outs: 2 Air Loopback : ADAT LOUD AND CLEAR : Hi-res 24-bit/192kHz converters give recordings stunning clarity. High dynamic range and ultra-low noise makes sure Scarlett sounds just like you. WORK FASTER, NOT HARDER : Mac, PC or iPadOS. Super-low latency means better takes. Better takes mean better recordings. Scarlett keeps you on track. SPECIFICATIONS IN DETAIL : We always quote 'real world' performance figures (measured to the AES17 standard). Some companies choose to quote chipset performance, which is misleading, and here's why. To check supported operating systems please click here. SUPPORTED SAMPLE RATES : 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz MICROPHONE INPUTS : Frequency Response : 20Hz - 20kHz ± 0.1dB Dynamic Range : 111dB (A-weighted) THD+N : Noise EIN : -128dBu (A-weighted) Maximum Input Level : 9dBu (at minimum gain) Gain Range : 56dB Impedance : 3kΩ LINE INPUTS 1-4 (VARIABLE GAIN) Frequency Response : 20Hz - 20kHz ± 0.1dB Dynamic Range : 110.5dB (A-weighted) THD+N : Maximum Input Level : 22dBu (at minimum gain) Gain Range : 56dB Impedance : 60kΩ LINE INPUTS 5-8 (FIXED GAIN) : Frequency Response : 20Hz - 20kHz ± 0.1dB Dynamic Range : 110.5dB (A-weighted) THD+N : Maximum Input Level : 18dBu (at minimum gain) Impedance : 44kΩ INSTRUMENT INPUTS: Frequency Response : 20Hz - 20kHz ± 0.1dB Dynamic Range : 110dB (A-weighted) THD+N : Maximum Input Level : 12.5dBu (at minimum gain) Gain Range : 56dB Impedance : 1.5MΩ LINE/MONITOR OUTPUTS: Dynamic Range (Line Outputs) : 108dB THD+N : Maximum Output Level (0 dBFS) : 15.5dBu Impedance : 430Ω HEADPHONE OUTPUTS: Dynamic Range : 104dB (A-weighted) THD+N : Maximum Output Level : 7dBu Impedance : SPECIFICATIONS IN DETAIL We always quote 'real world' performance figures (measured to the AES17 standard). Some companies choose to quote chipset performance, which is misleading, and here's why. To check supported operating systems please click here . SSPECIFICATIONS IN DETAILPECIFICATIONS IN DETAIL SPECIFICATIONS IN DETAIL
