GIULIANI Equalizer EQ7545R
✓ In Stock (525 available)
The GIULIANI EQ-7545R is an active under-saddle piezo pickup and preamp system with a 4-Band EQ (Bass, Middle, Treble, Presence) for precise tone shaping. Features a master volume knob, battery check LED, 20Hz–20kHz frequency response, ±12dB EQ range, and a standard ¼" end-pin output jack. Powered by a single 9V battery — easy to install, built to perform.
SKU: 002655
Description

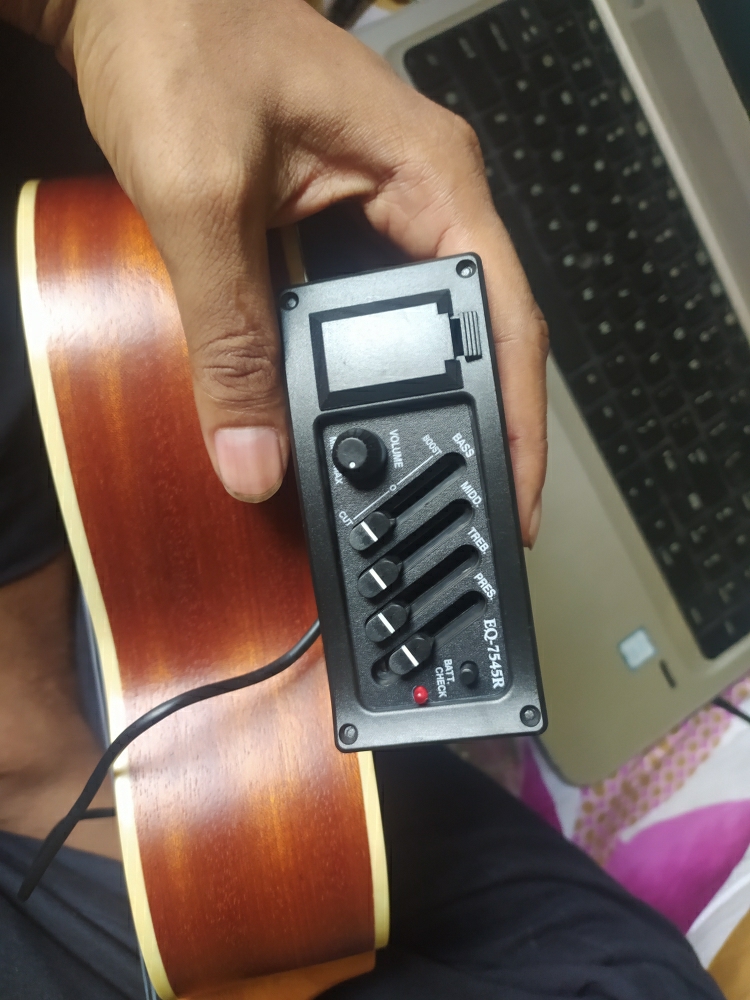

GIULIANI EQ-7545R Acoustic Guitar Preamp & Equalizer System
Upgrade your acoustic guitar with the EQ-7545R Active Preamp & Equalizer System — a professional-grade pickup solution trusted by guitarists and luthiers worldwide. Available under various brand names including Giuliani, Andoer, and Cherub, this standardized system delivers reliable performance for both standard acoustic guitars and DIY builds like cigar box guitars.
Complete Tone Control at Your Fingertips The EQ-7545R features a 4-Band Equalizer with independent sliders for Bass, Middle, Treble, and Presence, giving you full control over your sound — from warm low-end to crisp high-frequency air. A master Volume Knob lets you dial in your ideal output level, while the built-in Battery Check LED keeps you stage-ready by alerting you before power runs out.
Key Specifications
Frequency Response: 20Hz – 20kHz
EQ Range: ±12dB per band (Bass / Mid / Treble / Presence)
Input Impedance: 2.2MΩ – 10MΩ
Pickup Type: Under-saddle piezo ceramic transducer
Output: Standard ¼" (6.35mm) mono end-pin jack
Power: 1 × 9V alkaline battery (not included)
Unit Dimensions: 10.5 × 4.7 × 6 cm
