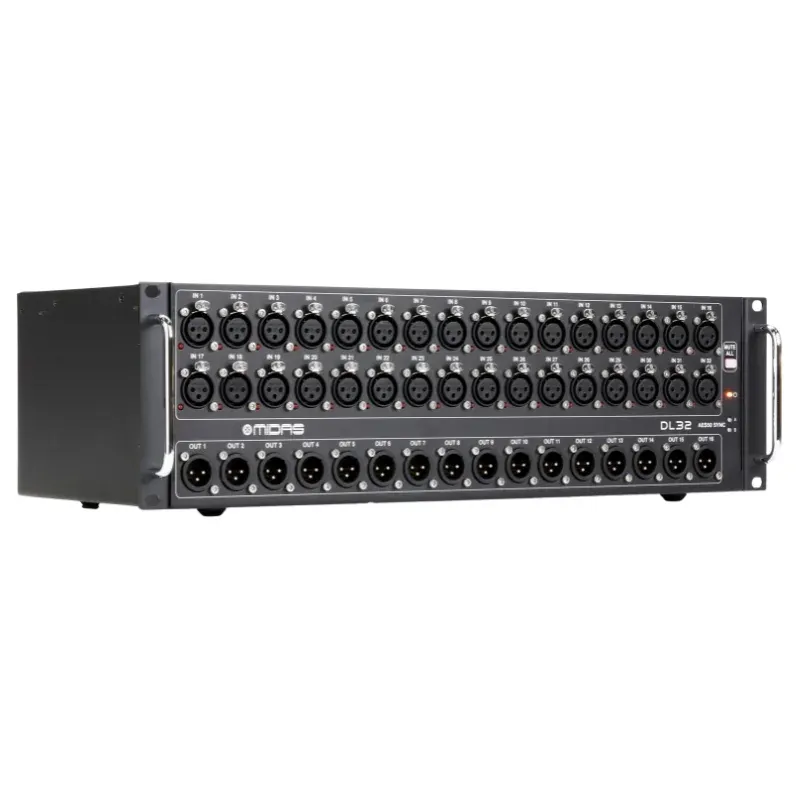

MIDAS Stage Box DL 32

Midas DL32 — 32-Input / 16-Output Digital Stage Box

32 Midas PRO Preamps — Award-winning mic preamps with high headroom, warm analog character, and ultra-low noise floor; the same circuits found in large-format Midas touring consoles
Individual +48V Phantom Power — Switchable per channel directly from the mixing console, with clear LED indicators on the stage box front panel
Dual AES50 SuperMAC Ports — Transmit up to 48 bidirectional channels over a single Cat5e cable at ~1.1ms round-trip latency; cascade a second DL32 or DL16 without any external network gear
16 Balanced XLR Line Outputs — Low-impedance servo-balanced outputs to feed floor monitors, in-ear transmitters, or main PA systems
ULTRANET Port — Send a direct 16-channel digital split to Behringer Powerplay P16-M personal mixers or Turbosound iQ speakers via standard RJ45 cable
Dual ADAT Optical Outputs — Two TOSLINK connectors deliver 16 channels of digital output (Ch. 17–32) for standalone recording rigs or digital splits
2x AES/EBU (AES-3) Outputs — Direct digital link to professional PA processors or system controllers via XLR
MIDI In/Out — Bidirectional MIDI connectivity for on-stage keyboards, sound modules, or lighting rigs
100m Cable Run — Reliable signal transmission up to 100 meters via shielded Cat5e — no signal degradation, no ground loops
24-bit / 48kHz Conversion — 114dB dynamic range for transparent, high-fidelity audio reproduction
Rugged 3U Steel Chassis — Road-ready rackmount build with universal auto-ranging PSU (100–240V) for global use
